Formalization and Automation of STPA with Robustness (FASR)

System Safety Analysis

Formal Verification

The Formalization and Automation of STPA with Robustness (FASR) project uses robustness to partially automate the System Theoretic Process Analysis (STPA).

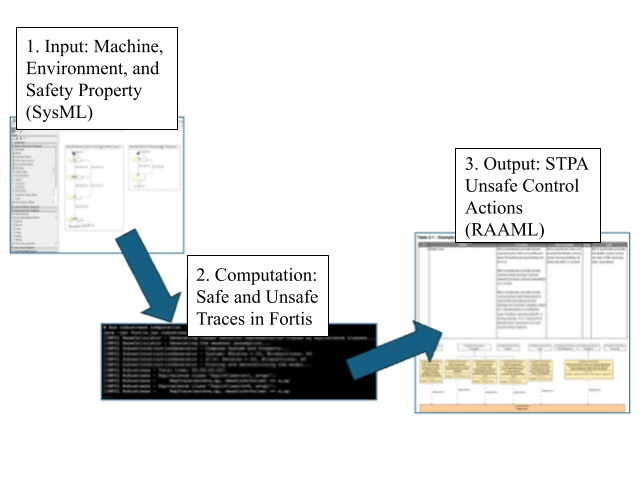

Users model critical portions of their system in SysML with the Cameo Enterprise Architect modeling environment. Then the FASR tool translates the models to TLA+, uses CMU SoDA’s Fortis to analyze their robustness, classifies the output, and reports back any Unsafe Control Actions to the user. This reporting takes place in Cameo EA, and uses the recent RAAML standardized hazard analysis format.

Tools:

• Fortis (be sure to use the FASR branch)
• FASR
